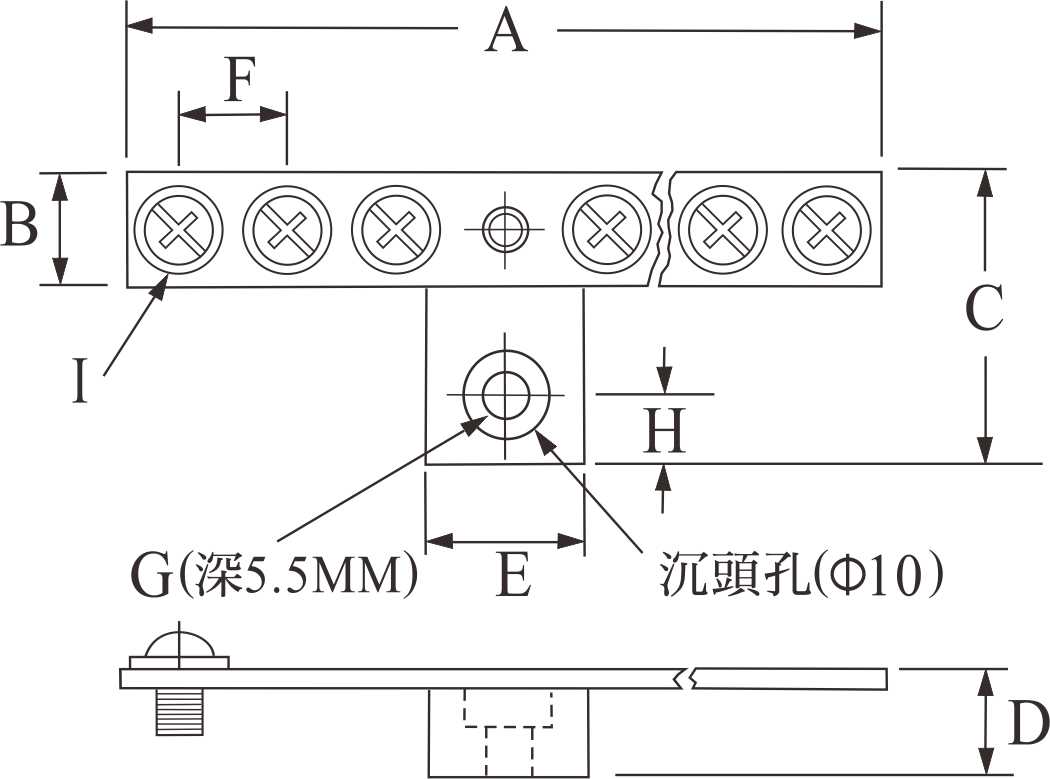

| 型號 |
單位：MM |
| A |
B |
C |
D |
E |
F |
G |
H |
I |
| GT-3P |
50.5 |
13 |
33 |
11.6 |
18 |
12.5 |
Φ5.4 |
7.5 |
3/16"X5/16" 螺絲 |
| GT-4P |
63 |
13 |
33 |
11.6 |
18 |
12.5 |
Φ5.4 |
7.5 |
3/16"X5/16" 螺絲 |
| GT-5P |
75.5 |
13 |
33 |
11.6 |
18 |
12.5 |
Φ5.4 |
7.5 |
3/16"X5/16" 螺絲 |
| GT-6P |
88 |
13 |
33 |
11.6 |
18 |
12.5 |
Φ5.4 |
7.5 |
3/16"X5/16" 螺絲 |
| GT-7P |
100.5 |
13 |
33 |
11.6 |
18 |
12.5 |
Φ5.4 |
7.5 |
3/16"X5/16" 螺絲 |
 |
|
|
: |

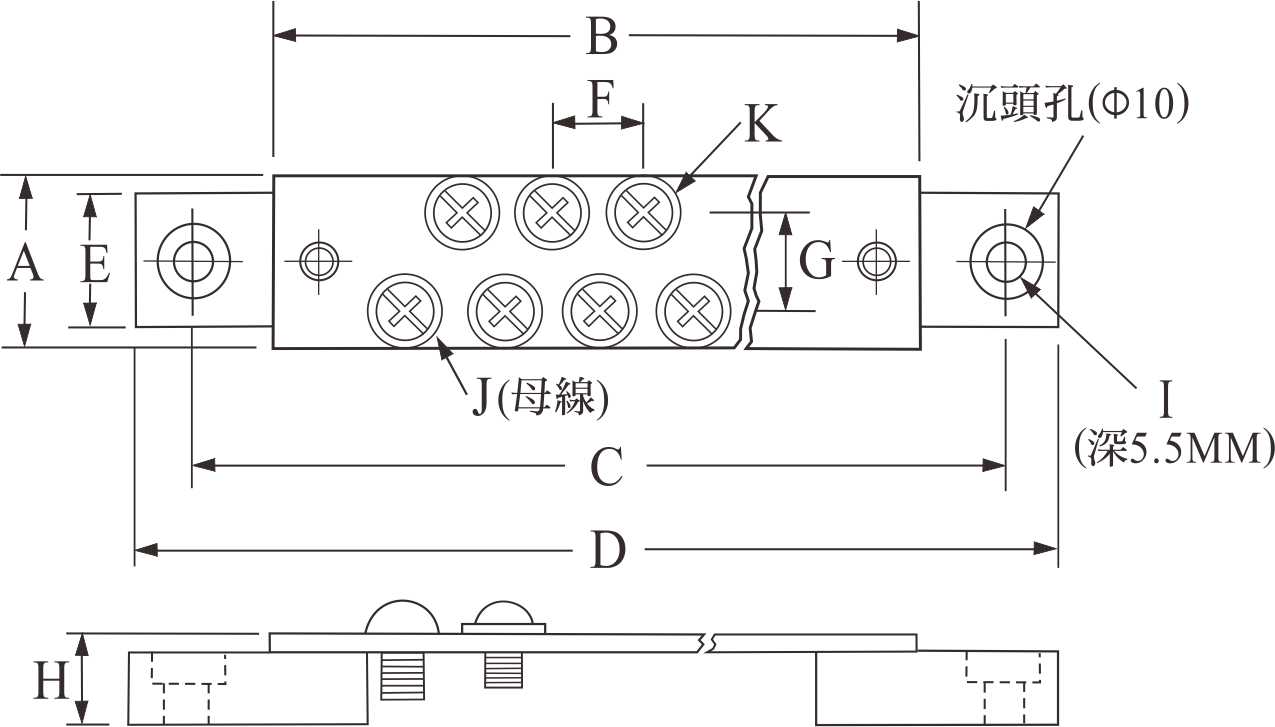

接地端子板(二排)
|
|
: |
35A |
|
: |
稱呼P數(點數)未含母線裝配點
|
|
| 型號 |
單位：MM |
| A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
| GT-8P |
23 |
88.5 |
112 |
127 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
| GT-9P |
23 |
95 |
118.5 |
133.5 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
| GT-10P |
23 |
101 |
124.5 |
139.5 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
| GT-12P |
23 |
113.5 |
137 |
152 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
| GT-14P |
23 |
126 |
149.5 |
164.5 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
| GT-16P |
23 |
138.5 |
162 |
177 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
| GT-18P |
23 |
151 |
174.5 |
189.5 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
| GT-20P |
23 |
163.5 |
187 |
202 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
| GT-22P |
23 |
176 |
199.5 |
214.5 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
| GT-24P |
23 |
188.5 |
212 |
227 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
| GT-26P |
23 |
201 |
224.5 |
239.5 |
18 |
12.5 |
12.5 |
11.6 |
Φ5.4 |
1/4"X3/8" 螺絲 |
3/16"X5/16" 螺絲 |
|
|
