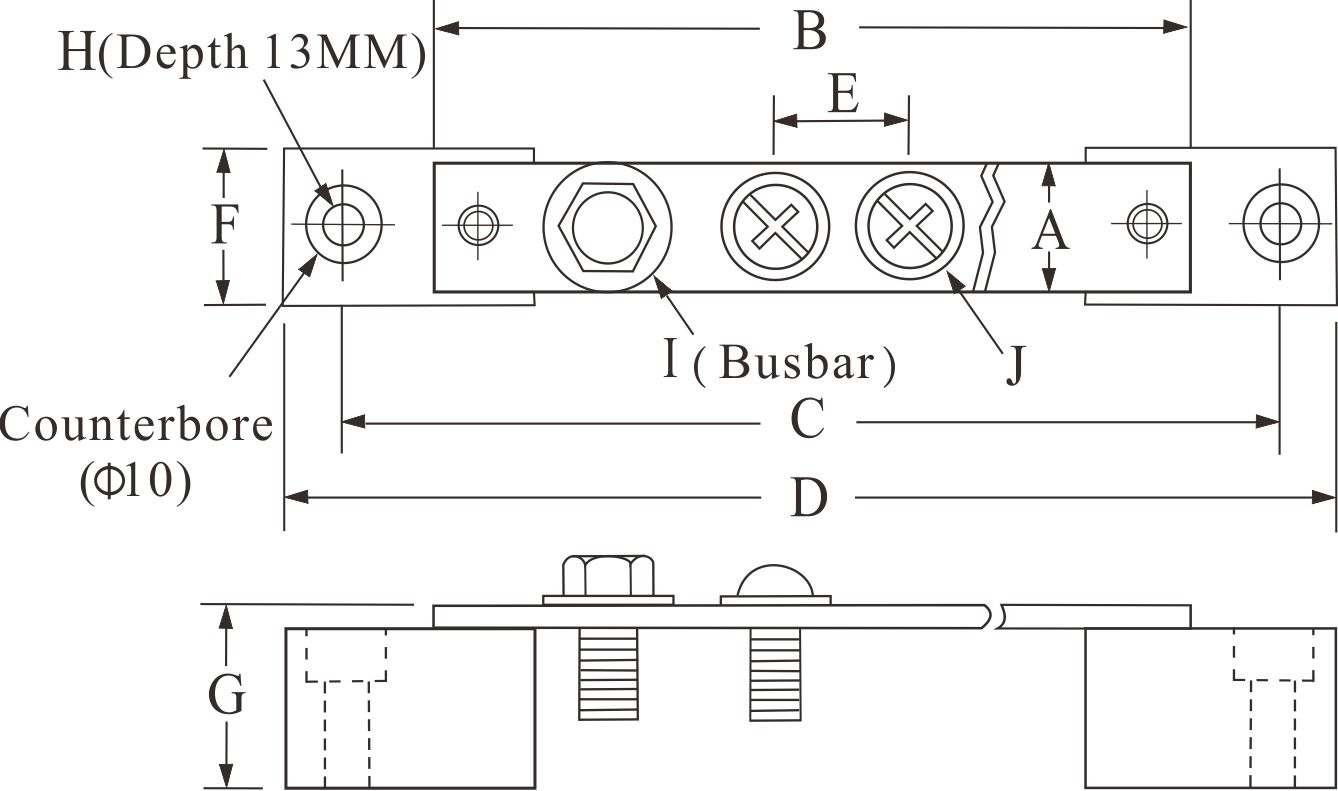

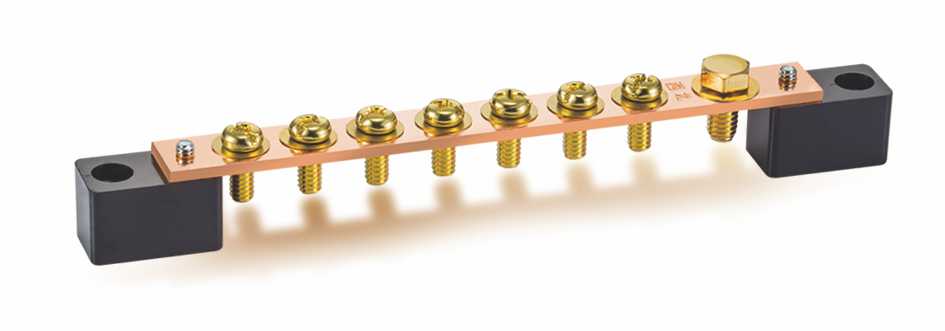

Power Terminal Plate Series(Single-Row) |
|
: |
100A |
|
: |
No. P, exclude bus bar installation point |
|
| Specifications(Single Row) |
| Model |
| Unit：MM |
| A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
| MT-5P |
17 |
133 |
157 |
172 |
17 |
19 |
23 |
Φ5.4 |
5/16"X5/8" screw |
1/4"X5/8" screw |
| MT-6P |
17 |
150 |
174 |
189 |
17 |
19 |
23 |
Φ5.4 |
5/16"X5/8" screw |
1/4"X5/8" screw |
| MT-7P |
17 |
167 |
191 |
206 |
17 |
19 |
23 |
Φ5.4 |
5/16"X5/8" screw |
1/4"X5/8" screw |
 |
|
|
: |

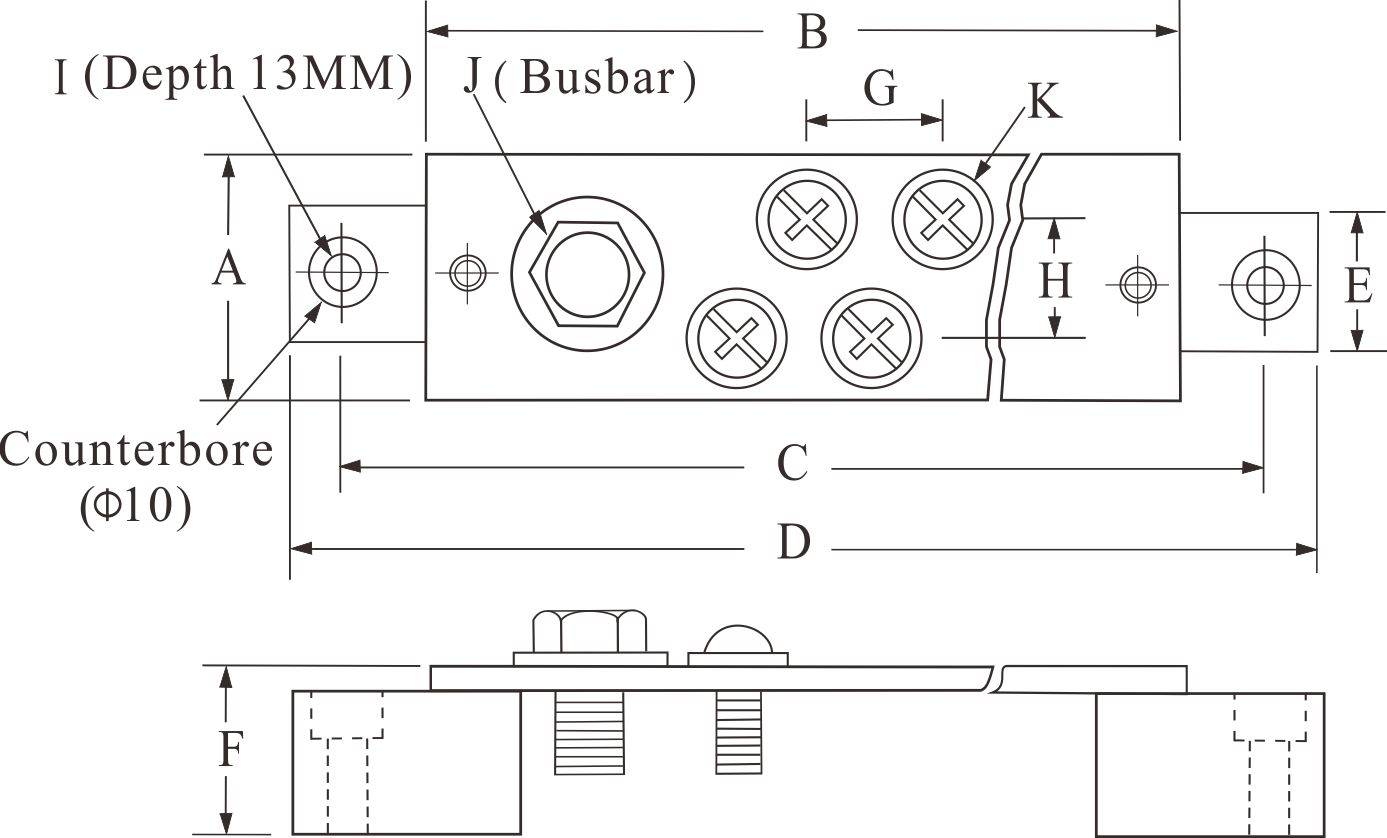

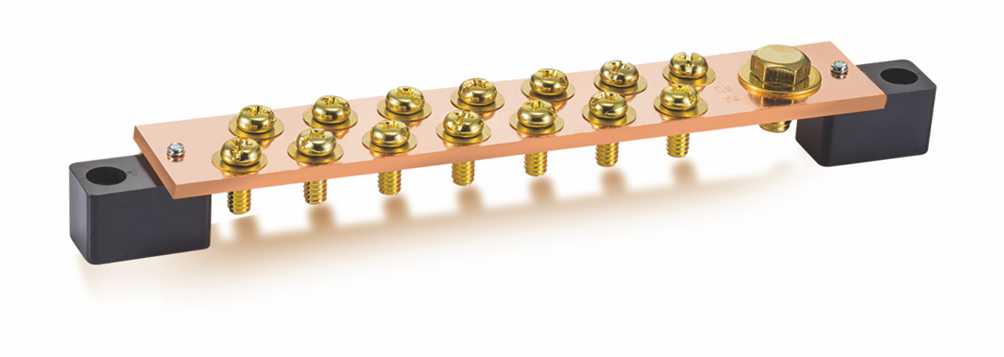

Power Terminal Plate Series(Double-Row) |
|
: |
200A |
|
: |
No. P, exclude bus bar installation point |
|
| Specifications(Double Row) |
| Model |
Unit：MM |
| A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
| MT-8P |
34 |
136 |
160 |
175 |
19 |
24 |
20 |
17 |
Φ5.4 |
3/8"X5/8" screw |
1/4"X5/8" screw |
| MT-10P |
34 |
156 |
180 |
195 |
19 |
24 |
20 |
17 |
Φ5.4 |
3/8"X5/8" screw |
1/4"X5/8" screw |
| MT-12P |
34 |
176 |
200 |
215 |
19 |
24 |
20 |
17 |
Φ5.4 |
3/8"X5/8" screw |
1/4"X5/8" screw |
| MT-14P |
34 |
196 |
220 |
235 |
19 |
24 |
20 |
17 |
Φ5.4 |
3/8"X5/8" screw |
1/4"X5/8" screw |
| MT-16P |
34 |
216 |
240 |
255 |
19 |
24 |
20 |
17 |
Φ5.4 |
3/8"X5/8" screw |
1/4"X5/8" screw |
| MT-18P |
34 |
236 |
260 |
275 |
19 |
24 |
20 |
17 |
Φ5.4 |
3/8"X5/8" screw |
1/4"X5/8" screw |
| MT-20P |
34 |
256 |
280 |
295 |
19 |
24 |
20 |
17 |
Φ5.4 |
3/8"X5/8" screw |
1/4"X5/8" screw |
| MT-22P |
34 |
276 |
300 |
315 |
19 |
24 |
20 |
17 |
Φ5.4 |
3/8"X5/8" screw |
1/4"X5/8" screw |
| MT-24P |
34 |
296 |
320 |
335 |
19 |
24 |
20 |
17 |
Φ5.4 |
3/8"X5/8" screw |
1/4"X5/8" screw |
| MT-26P |
34 |
316 |
340 |
355 |
19 |
24 |
20 |
17 |
Φ5.4 |
3/8"X5/8" screw |
1/4"X5/8" screw |
|
|
