Name

:

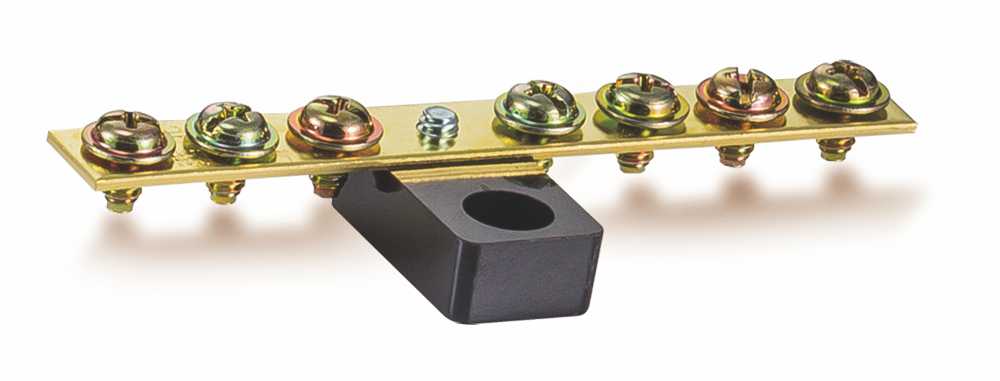

Earthing Terminal Plate Series (Single Row)

Max Current

:

20A

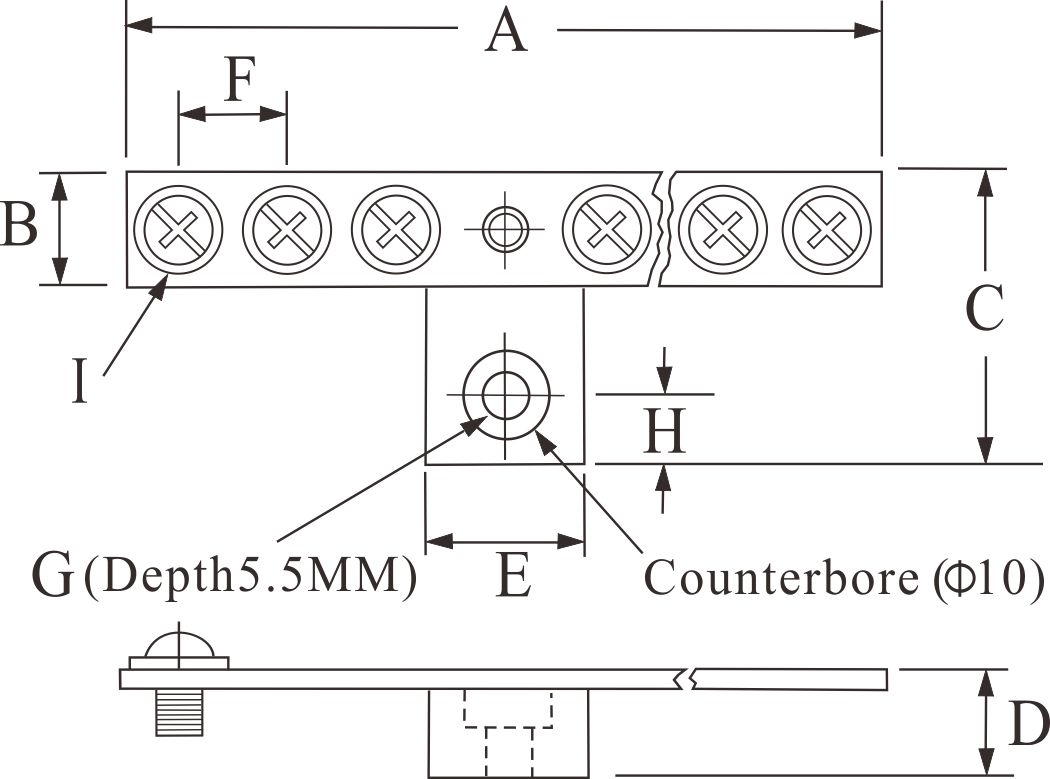

Specifications(Single Row)
Model Unit：MM
A B C D E F G H I
GT-3P 50.5 13 33 11.6 18 12.5 Φ5.4 7.5 3/16"X5/16" screw
GT-4P 63 13 33 11.6 18 12.5 Φ5.4 7.5 3/16"X5/16" screw
GT-5P 75.5 13 33 11.6 18 12.5 Φ5.4 7.5 3/16"X5/16" screw
GT-6P 88 13 33 11.6 18 12.5 Φ5.4 7.5 3/16"X5/16" screw
GT-7P 100.5 13 33 11.6 18 12.5 Φ5.4 7.5 3/16"X5/16" screw


Name

:

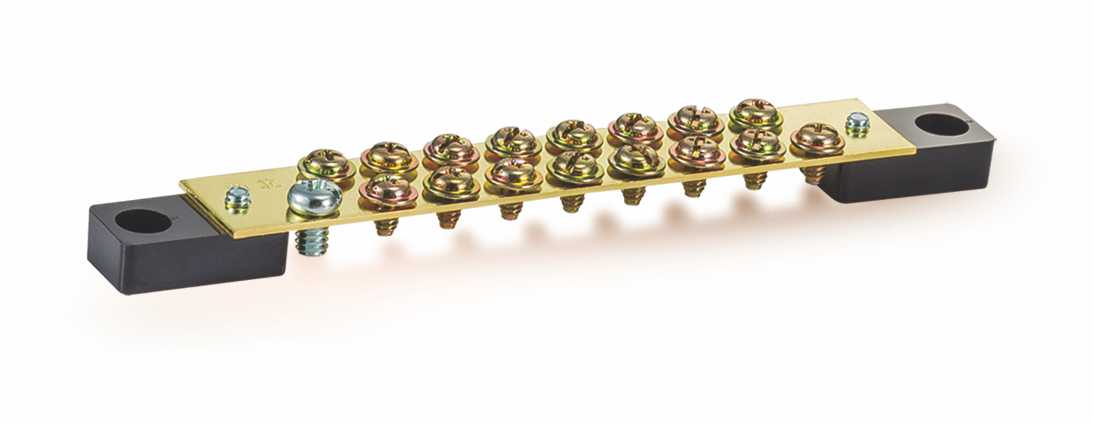

Earthing Terminal Plate Series (Double Row)

Max Current

:

35A

Note

:

No. P, exclude bus bar installation point

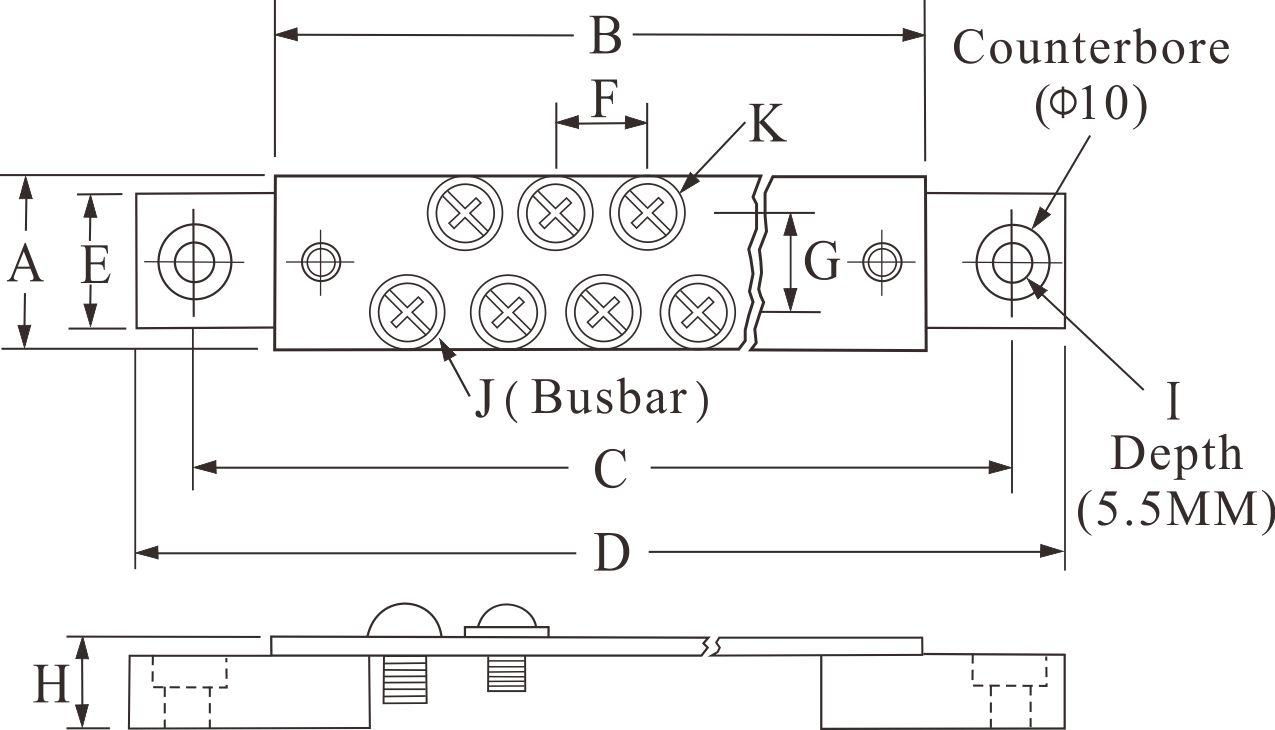

Specifications(Double Row)
Model Unit：MM
A B C D E F G H I J K
GT-8P 23 88.5 112 127 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
GT-9P 23 95 118.5 133.5 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
GT-10P 23 101 124.5 139.5 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
GT-12P 23 113.5 137 152 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
GT-14P 23 126 149.5 164.5 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
GT-16P 23 138.5 162 177 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
GT-18P 23 151 174.5 189.5 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
GT-20P 23 163.5 187 202 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
GT-22P 23 176 199.5 214.5 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
GT-24P 23 188.5 212 227 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
GT-26P 23 201 224.5 239.5 18 12.5 12.5 11.6 Φ5.4 1/4"X3/8" screw 3/16"X5/16" screw
