Name

:

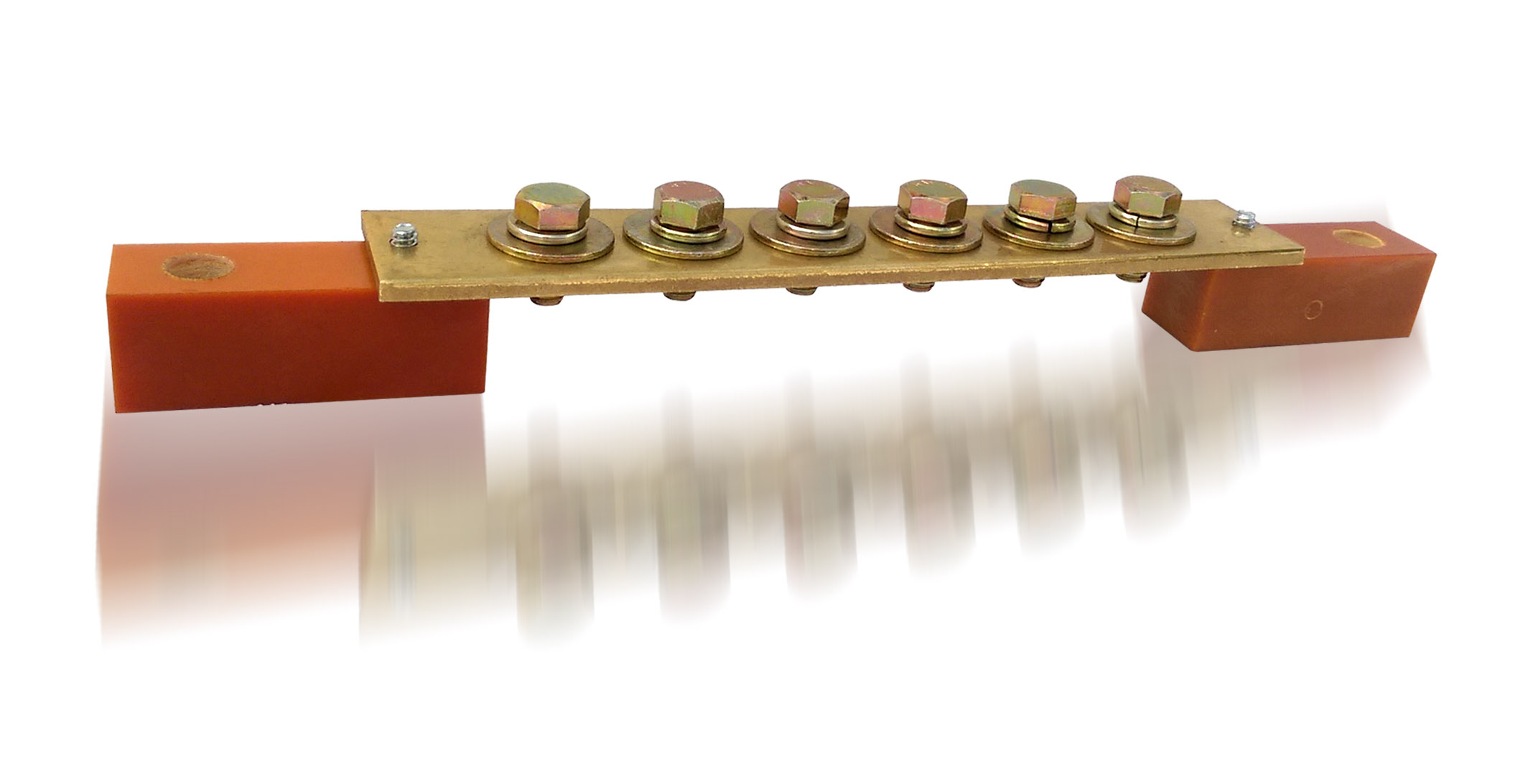

Earthing Copper Plate /
Power Terminal Plate Series

Max Current

:

120A

Notes

:

P represents connecting dots

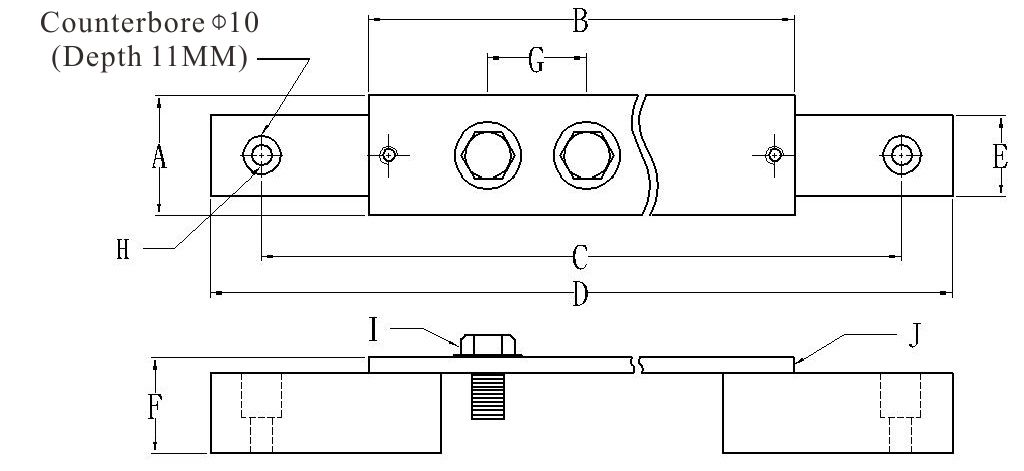

Specifications(big dots)
Model Unit:MM
A B C D E F G H I J
GTB-3P 30 110 164 190 20 24 25 Φ5.4 5/16"×5/8"screw   copper
GTB-4P 30 135 189 215 20 24 25 Φ5.4 5/16"×5/8"screw   copper
GTB-5P 30 160 214 240 20 24 25 Φ5.4 5/16"×5/8"screw   copper
GTB-6P 30 185 239 265 20 24 25 Φ5.4 5/16"×5/8"screw   copper
GTB-7P 30 210 264 290 20 24 25 Φ5.4 5/16"×5/8"screw   copper
GTB-8P 30 235 289 315 20 24 25 Φ5.4 5/16"×5/8"screw   copper
GTB-9P 30 260 314 340 20 24 25 Φ5.4 5/16"×5/8"screw   copper
GTB-10P 30 285 339 365 20 24 25 Φ5.4 5/16"×5/8"screw   copper
